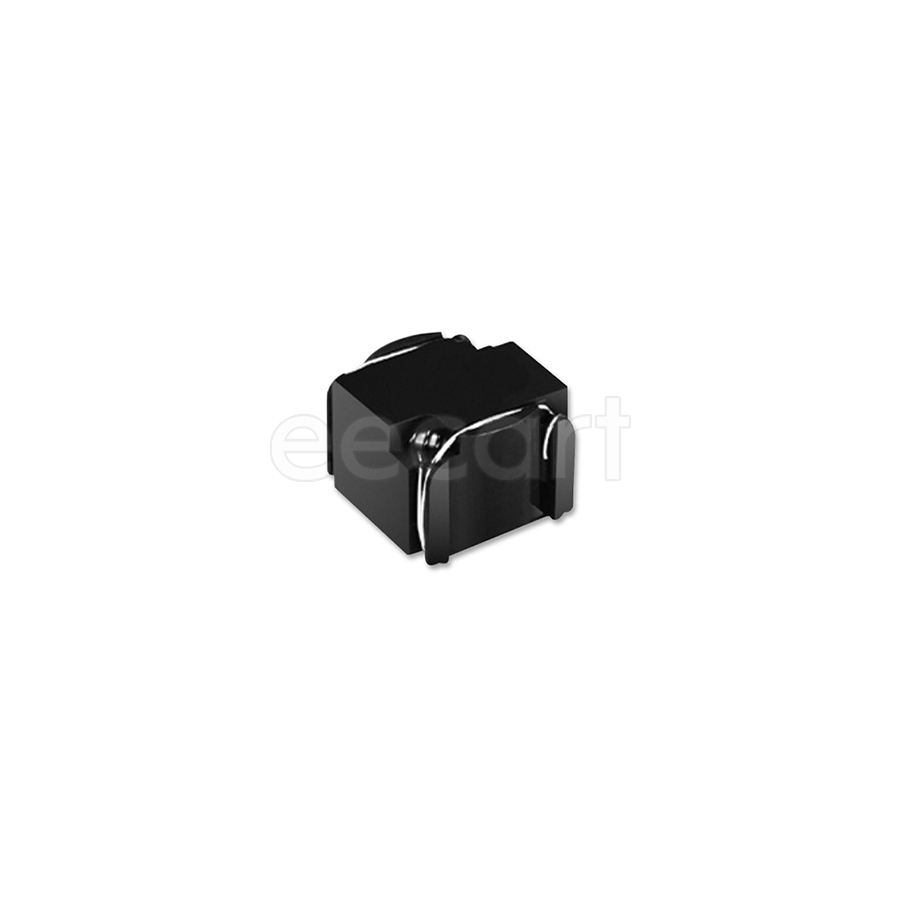

PE-53829SNLT
Manufacturer:
Pulse Electronics
Mfr.Part #:
PE-53829SNLT
Datasheet:
Description:
Fixed Inductors 15.75mmL×15.24mmW×9.91mmH SMD/SMT 112 µH 20 % 1.26 A 300 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 9.91 mm |
| Length | 15.24 mm |
| Width | 15.24 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 9.91 mm |
| Packaging | Reel |
| Depth | 15.24 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Toroidal |
| Current Rating | 1.26 A |
| DC Resistance (DCR) | 300 mΩ |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 112 µH |
| RMS Current (Irms) | 1.26 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.26 A |
| DC Current | 1.26 A |
| Schedule B | 8504500000 |
Stock: 36
Distributors
pcbx
pcbxUnit Price$4.05533
Ext.Price$4.05533
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.05533 | $4.05533 |
| 10 | $3.50957 | $35.09570 |
| 25 | $3.28793 | $82.19825 |
| 50 | $3.08029 | $154.01450 |
| 100 | $2.88575 | $288.57500 |
| 300 | $2.80873 | $842.61900 |
| 500 | $2.73375 | $1366.87500 |
| 1000 | $2.66372 | $2663.72000 |
